Commercial/Institutional/Industrial
Technology
Specific Solutions
 |
 |
 |
 |
 |
| Commercial |
Health Care Facilities |
Hospitality |
Industrial |
Institutional |
| HD Industrial Active
Air Oxidizing Plasma Generator Series |

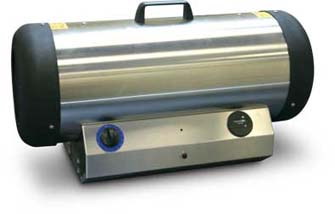

1000
Medium Duty Ozone
Oxidation Generator

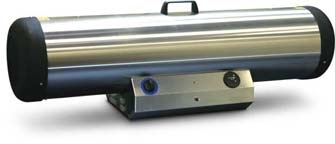

7000
Heavy Duty Ozone
Oxidation Generator
|
When
the IAQ problem absolutely must go away, that's when a Active Air HD
Industrial Oxidizing Plasma Generator is brought to play.
In
the war for indoor air quality, think of it as "Shock and Awe" for
mold, pathogens, smoke, and odors, for the Active
Air HD Industrial Oxidizing Plasma Generator
is the Mother of All Air Purifiers.
It
takes no prisoners.
If
you are a pathogen or contaminate, say your final "Goodbye's".
|
Active
Air HD Industrial Oxidizing Plasma Generators are ideally applicable to
fire and flood restoration or any other "over the top" IAQ situations.
Intended for use in unoccupied
spaces, Active
Air HD Industrial Oxidizing Plasma Generators are equipped with a 0 to 12
hour timer and hour meter that allows complete unattended use.
Nothing works better or faster to turn back the IAQ clock to
"safe" and "normal".
Features --
High Ozone output, odor
reduction, and restoration system.
Fully
automatic with built-in timer for unoccupied unattended function.
Plugs
into any standard 110 VAC outlet.
Active
Air HD Industrial Oxidizing Plasma Generators substantially reduce odors and
visible smoke in the air and microbial populations on surfaces,
utilizing the patent pending RCI Active Air technology. The RCI System consists of a special
high output UV light and a photocatalytic target which together produce
an Advanced Oxidation Plasma comprised of several friendly oxidizers
and also includes a high ozone output. |
|
 Where can a 1000 Active
Air HD Industrial Oxidizing Plasma Generator
(Medium Duty)
or a 7000 Active
Air HD Industrial Oxidizing Plasma Generator
(Heavy Duty)
be used?
|
| Agriculture |
Carpet Cleaners |
Hotels/Motels/Resort |
Apartments/Condos |
| Airplanes |
Dry Cleaners |
Janitorial Services |
Fire & Flood
Restoration |
| Office Buildings |
Automobiles/Buses |
Fitness Facilities |
Schools/Universities |
Where
"over the top" ends is where
the Active
Air HD Industrial Oxidizing Plasma Generator begins!
Treatment Plan
- Evacuate the area to be
treated (people & pets).
- Treat the area with sufficient
doses to eliminate all odor causing molecules.
- Ventilate the area before
reoccupying.
Air Treatment Formula
- Square feet of the "treated"
area X height of room = yields cubic feet of volume. [L x W x
H]
- Cubic Feet/CFM of TurboZoneTM
= minutes required to turn air
in the room once.
- It is generallyrecommended
that the room air be turned over, cuucled through purifier, a minimum
of three (3) times.
- The amount of time necessary
to sterilize an area with ozone depends on the temperature, humidity
level, and the amount of reactive substances prevalaent at the scene.
|
| WARNING.
The Active
Air HD Industrial Oxidizing Plasma Generator is NOT intended for any
airspace occupied by people or pets when it is doing its job.
Virtually any particulate, microbe, pathogen, fungus, odor,
or other contaminate within the air space while the Active
Air HD Industrial Oxidizing Plasma Generator is at work will be
neutralized. No questions asked. |
| Active
Air HD Industrial Oxidizing Plasma Generator -
Spec Sheet |
| Description |
Applications |
- High Ozone output, odor
reduction, and restoration system.
- Fully automatic with built-in
timer for unoccupied unattended function.
- Plugs into any standard 110
VAC outlet.
|
- Fire
and smoke restoration in unoccupied spaces.
- Flooded
buildings.
- Heavy
industrial chemical odors.
- Mold
infested areas.
- Neutralizing
of decomposing organics.
- Neutralizing
of heavy VOC's (as from newly installed carpet, flooring, varnish,
shellac, etc.
|
| The
technology |
Active
Air HD Industrial Oxidizing Plasma Generators substantially reduce odors
and visible smoke in the air andd microbial populations on surfaces*,
utilizing the patent pending RCI (Radiant Catalytic Ionization) Active Air Purification technology. The RCI technology consists of a
special high output UV light and photocatalyst target, creating an
Advanced Oxidation Plasma comprised of several friendly oxidizers,
including a high ozone output.
| *Scientific tests
have demonstrated the use of Active Air purifiers generating RCI (Radiant
Catalytic Ionization) substantially
reduce microbial populations on surfaces -- including, but
not limited to Escherichia coli, Listeria noncytogenes, Streptococcus
spp., Pseudonomas aeruginosa, Bacillus spp., Staphylococcus aureus,
Candida albicans, and S. chartarum. At this point, product
testing does not make a similar demonstration with respect to airborne
microbials. These statements have not been evaluated by the
FDA. These products are not intended to diagnose, treat,
cure, or prevent any disease. |
|
Active
Air HD Industrial Oxidizing Plasma Generator -
Specifications
1000
Series
7000
Series
|
| Electrical |
120 VAC, 1.25 amps, 50/60 Hz
120 VAC, 2.00 amps, 50/60 Hz |
60 watts
200 watts |
| Mechanical |
45
CFM fan
68 CFM fan |
12
hour timer w/ hold function and hour meter |
| Dimensions |
15"
H x 26" L x 13" W
15" H x 43" L x 13" W |
38
cm H x 66 cm L x 33 cm W
38 cm H x 109 cm L x 33 cm W |
| Weight |
12
pounds
36 pounds |
5.4
kilograms
16.3 kilograms |
Coverage /
Ozone Output |
5,000
SF
5,000 - 10,000 SF |
1,650
mg/hr
10,880 mg/hr |
INTENDED ONLY FOR USE IN UNOCCUPIED SPACES |
